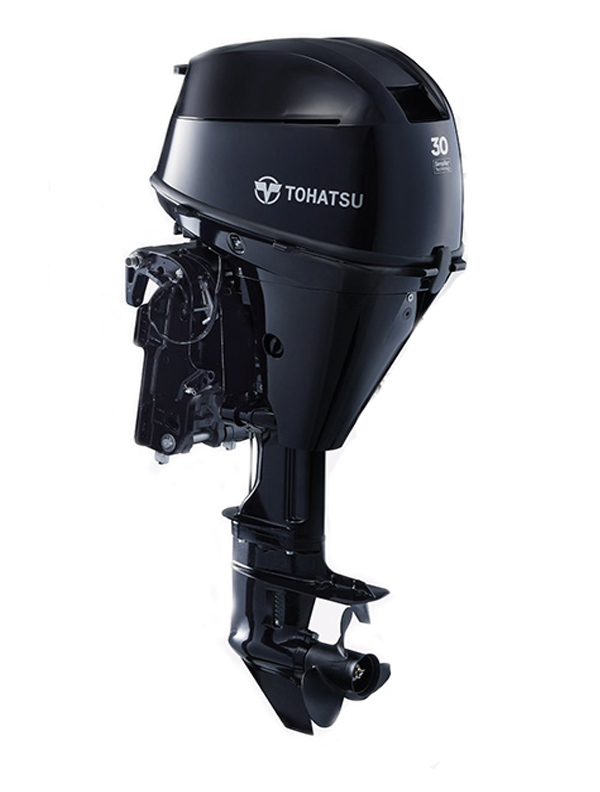

Models available:
- MFS30D S : 4STR Short Shaft, EFI
- MFS30D L : 4STR Long Shaft, EFI
- MFS30D EPS : 4STR Short Shaft, Elec Start, Remote Control, EFI
- MFS30D EPL : 4STR Long Shaft, Elec Start, Remote Control, EFI
- MFS30D EPTS : 4STR Short Shaft, Elec Start, Remote Control, Power Tilt EFI
- MFS30D EPTL : 4STR Long Shaft, Elec Start, Remote Control, Power Tilt EFI
- Can also be fitted with a Multifunction Tiller Handle to replace the remote control box if tiller control with electric start and power trim is preferred.
Overview:
- Light and compact!
- Advanced cross-flow induction for smooth operation
- Canister style oil filter for easy replacement
- Larger capacity oil reservoir for optimum lubrication
- Ultra Low emission, EPA and CARB approved
- Tuned intake system for crisp takeoffs
- 7 Year limited warranty
Features
- • Digital CD ignition system for quicker starts
- • Recoil starter with larger reel making manual starting fast and easy
- • Large alternator and rectifier for superior battery charging
- • Adjustable steering friction for reducing steering effort*
- • Front mounted shift lever for easier operation
- • Shallow water drive*
- • Remote Control **
- • Through-the-prop exhaust for a quieter ride
- • Thermostatically controlled cooling system for consistent engine temperature
- • Zinc coating on internal water passages for superior corrosion resistance
- • High grade marine aluminum alloy that provides the ultimate protection against corrosion
- • Stainless steel water pump housing liner for outstanding durability
- • 12 litre fuel tank including fuel fittings and fuel line
Specifications
| Engine | 4 Stroke 3 Cylinder |
|---|---|
| Output | 30 ps (22.1 kw) |
| Displacement | 500 cc (30.5 cu.in.) |
| Bore x Stroke | 61 x 57 mm (2.4 x 2.25 in) |
| Starting | Electric or Manual |
| Control Type | Remote Control or Tiller Handle |
| Gear Shift | Forward – Neutral – Reverse |
| Gear Ratio | 2.17:1 (12:26) |
| Propeller Selection Range | 8″ – 14″ |
| Transom Height | 15″, 20″ |
| Fuel | Unleaded Gasoline (87 Octane) |
| Oil Type | NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ) |
| Oil Capacity | 1.7L (1.8 qt.) |
| Fuel Tank | 25 L (6.6 US Gal.) Separate Fuel Tank |
| Weight* | 58 kg (128 lbs.) |
| Alternator Output | 12V, 210W, 17.5A |
| Max. RPM Range | 5,500 – 6,500 |
| Electronic Fuel Injection | Standard |
| Digital CD Ignition System | Standard |
| Start In Gear Protection | Standard |
| Thermostat Controlled Cooling System | Standard |
| Through-The-Prop Exhaust | Standard |
| Overheat Buzzer | Standard |
| Power Trim and Tilt | Option |
| Oil Pressure Warning | Standard |
| Variable Idle Speed | Standard |
| Shallow Water Drive | Standard |
