Models available
Suzuki DF325ATX (Extra Long 635mm) £25199
Suzuki DF325ATXX (Extra extra Long 762mm) £25599
AT POWER WITH PASSION

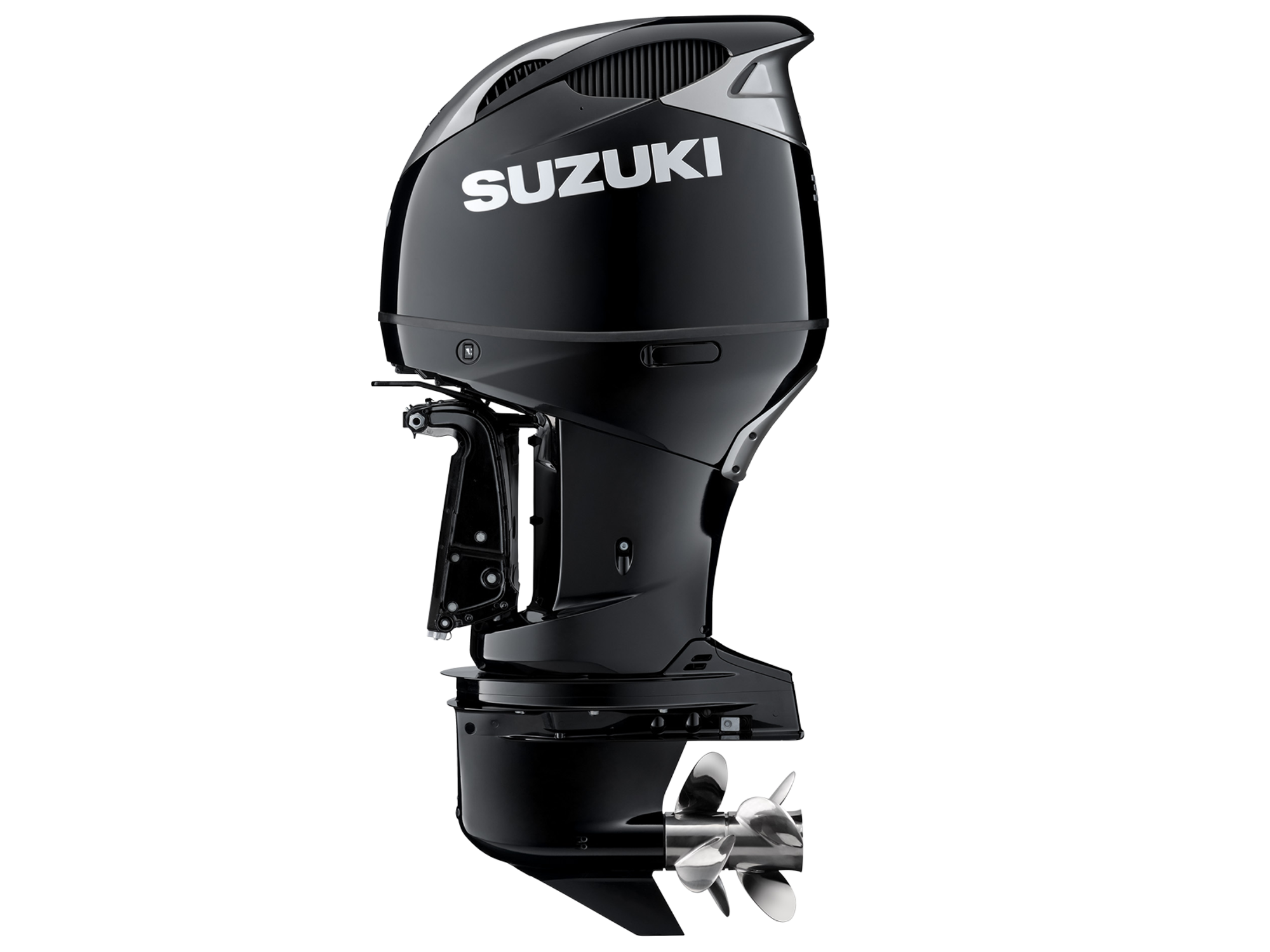

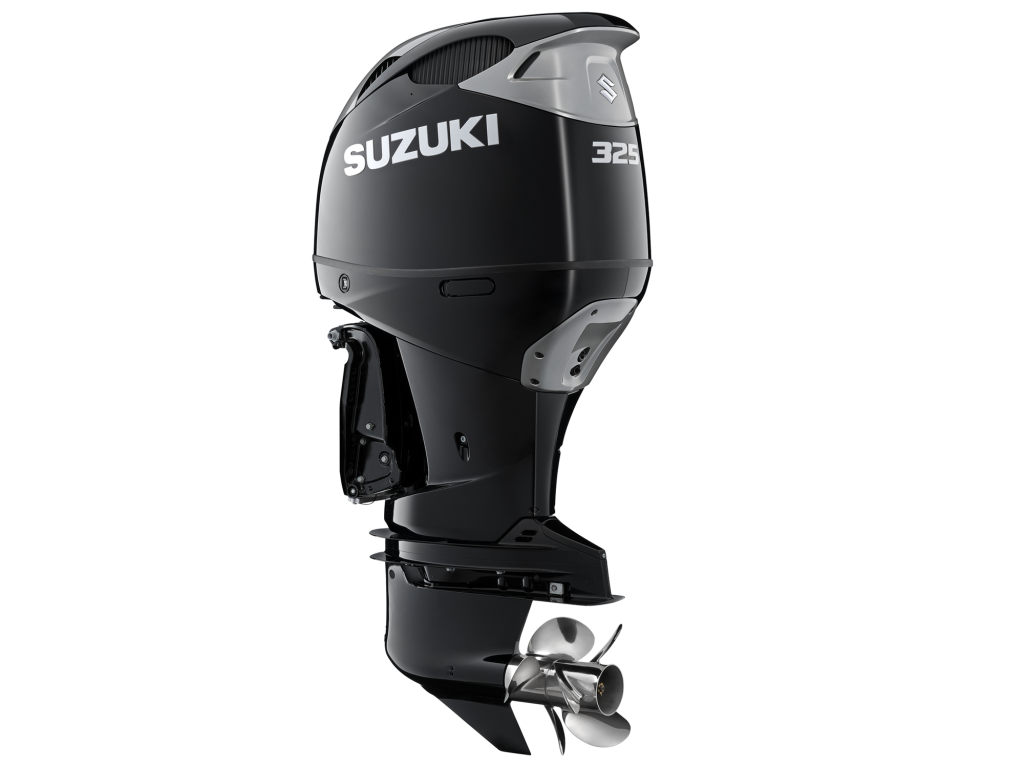

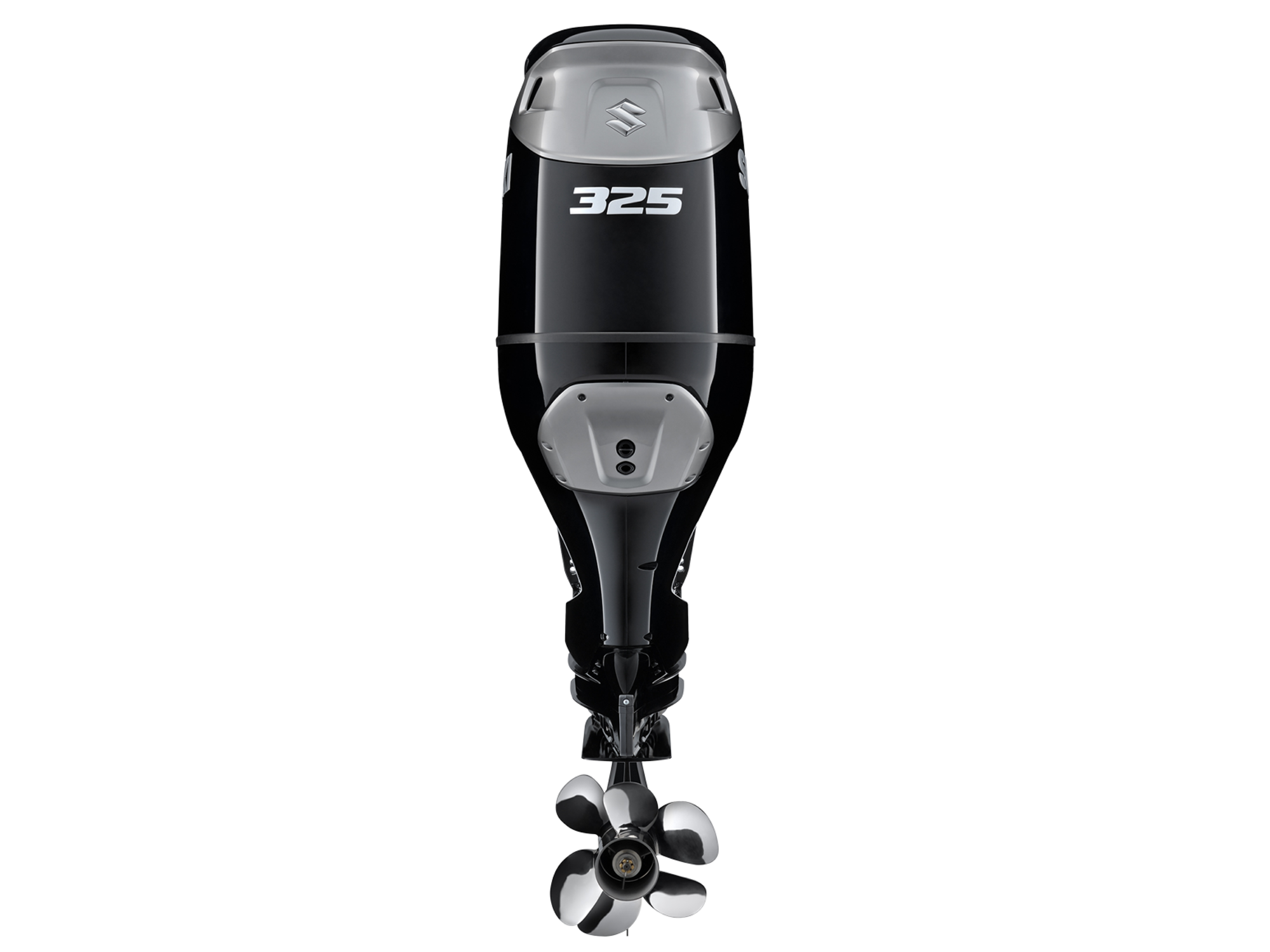

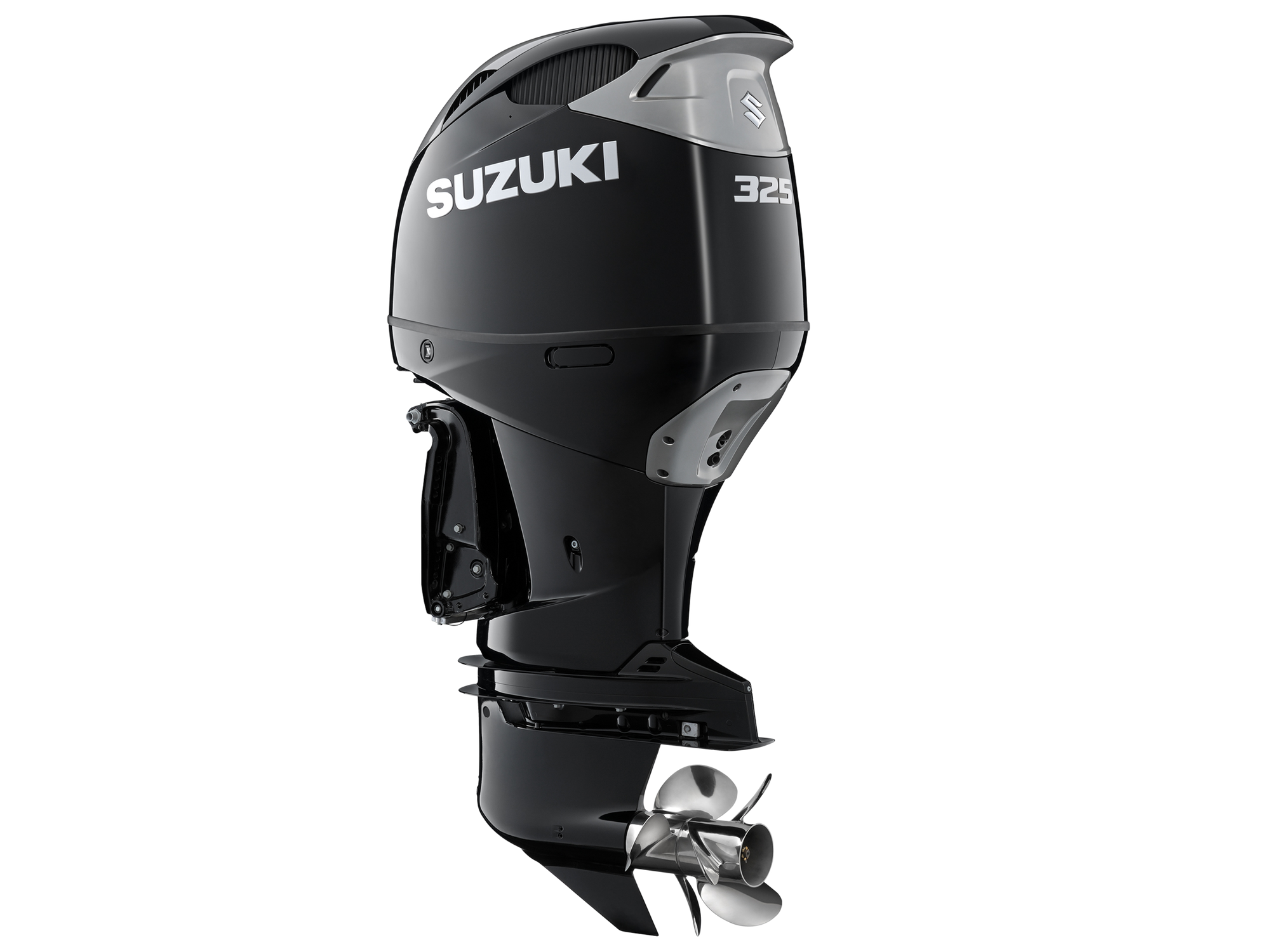

We are proud to introduce our DF325A – an outboard that perfectly balances awesome power and thrust, with outstanding fuel-efficiency and trusted reliability all within a lightweight and stylish design.
Built with the every-day use of larger boats in mind, this market-leading outboard has been engineered to run on 91 RON fuel and, as a world-first, is the first four stroke outboard over 300 horsepower to do so.
The high-tech and innovative DF325A has been designed to be robust, easy to use and versatile, making it the ideal outboard for large boats whatever the task.
Whether you are using your boat for work or play, wherever you are in the world, this outboard is the ultimate choice.
BETTER STEERING IN ALL DIRECTIONS

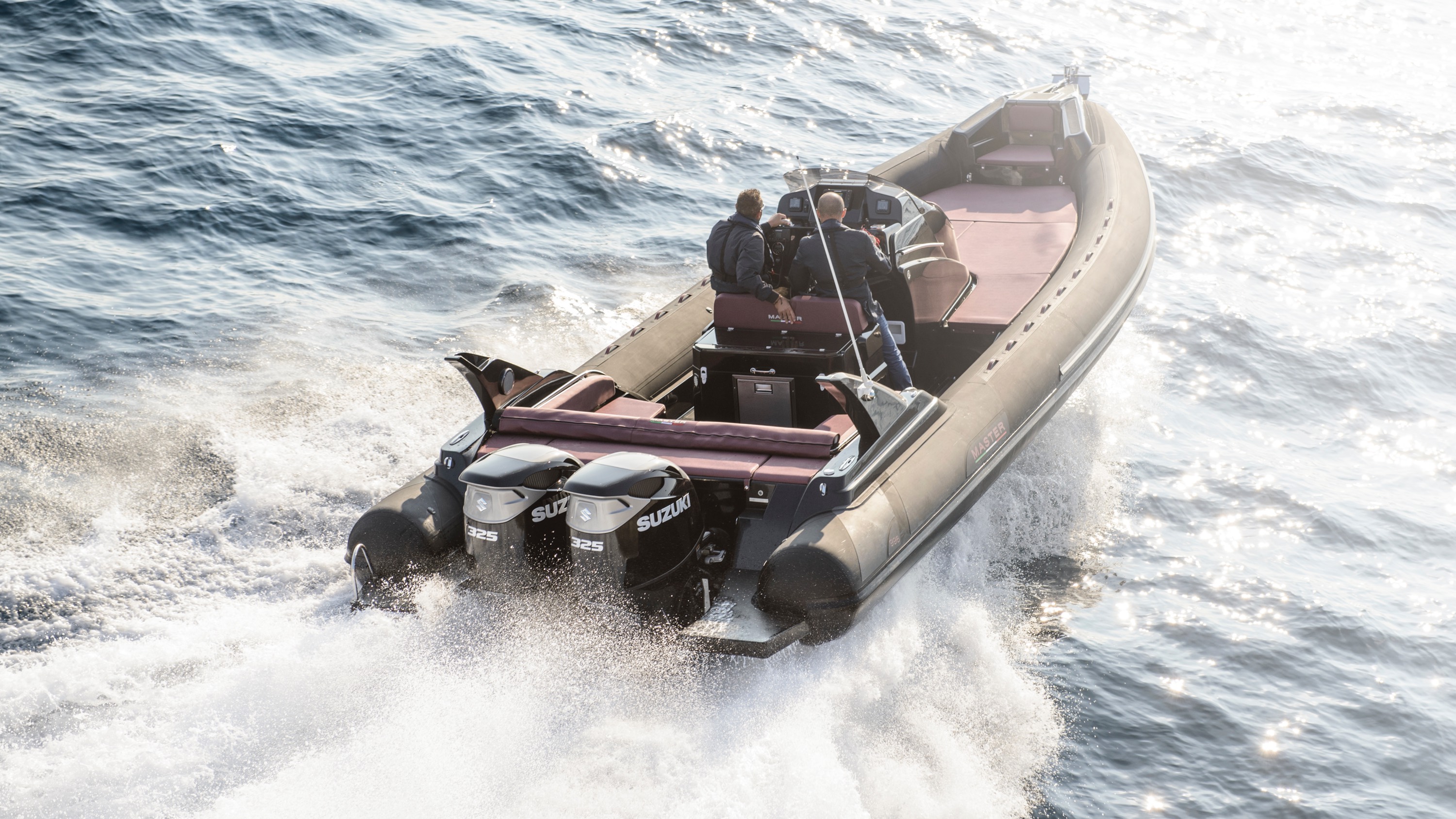

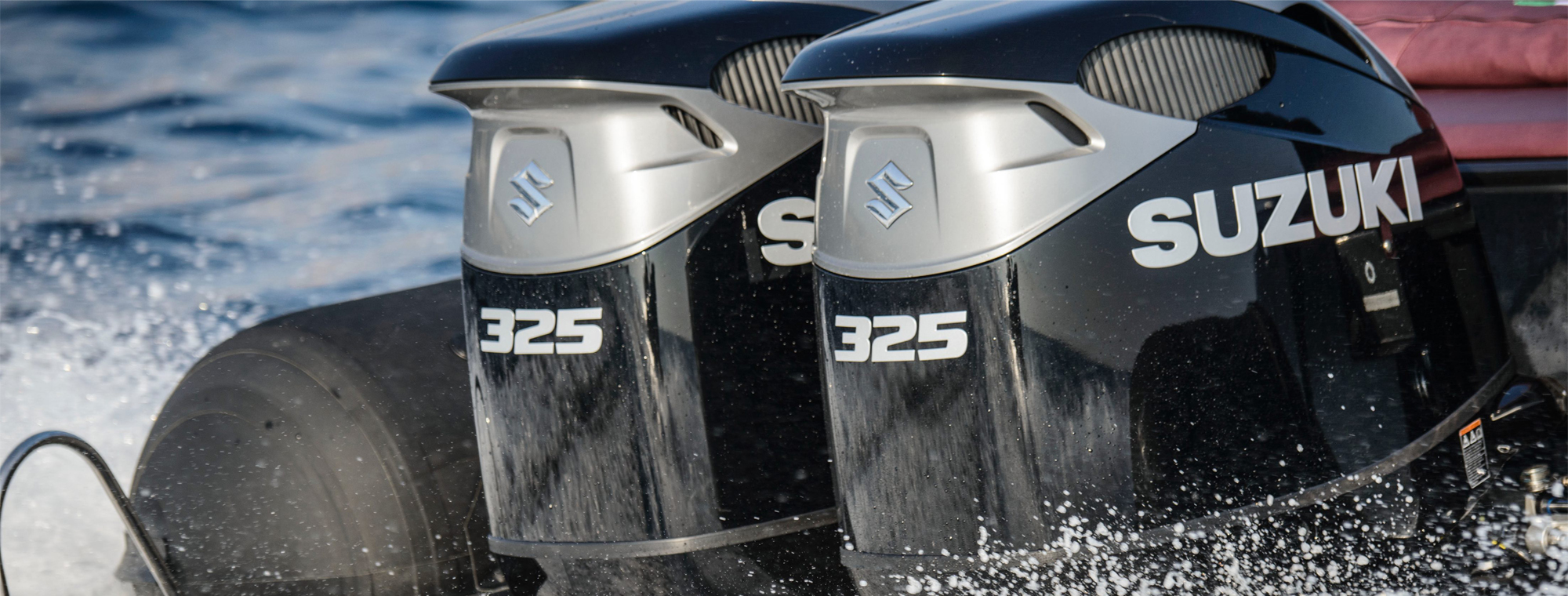

Normally, when using multiple outboards a combination of standard and counter-rotating engines is mounted. The Suzuki Selective Rotation, available on our AP series outboards, eliminates the need for different models, as any model can be easily programmed to run in either direction. The DF325A’s contra-rotating propeller technology takes this process one step further by eliminating steering torque and maximizing true and straight propulsion forces.
DESIGNING STRONGER REVERSE THRUST
The gear material was changed and heat treatment was added to endure the added thrust and inertial mass from the reverse thrust, which was stronger on a contra-rotating propeller. In addition, the reverse gear was moved above the cavitation plate and the position of the lower engine mounts was modified from parallel to V-shape to fit the reverse gear above the cavitation plate.
DUAL WATER INTAKES
On the DF325A, the best results were achieved when the main intake was positioned at the front of the gear case, with the secondary intake located just above the skeg. This was our ultimate solution to arranging the main and sub intakes as far apart from each other as possible, and designing them to ensure a reliable amount of cooling water, especially at high speeds.
PROPELLER BLADE DESIGN
A three-blade front/three-blade back propeller set-up was developed that provided improved performance on the water. This new set up provided not only the highest recorded speeds for the DF325A, but also delivered incredible acceleration, even under heavy load and at high rotation speeds.

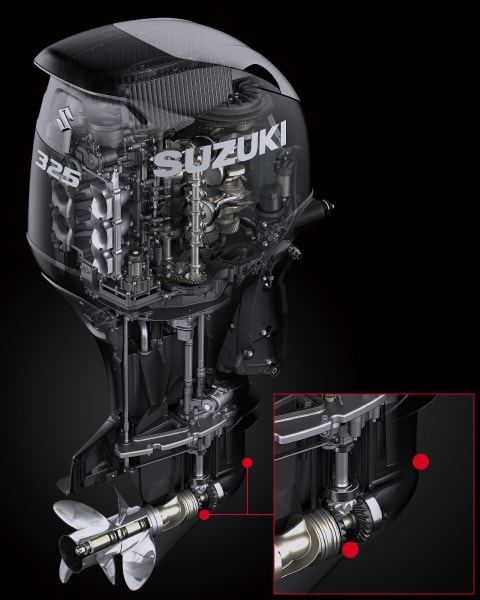

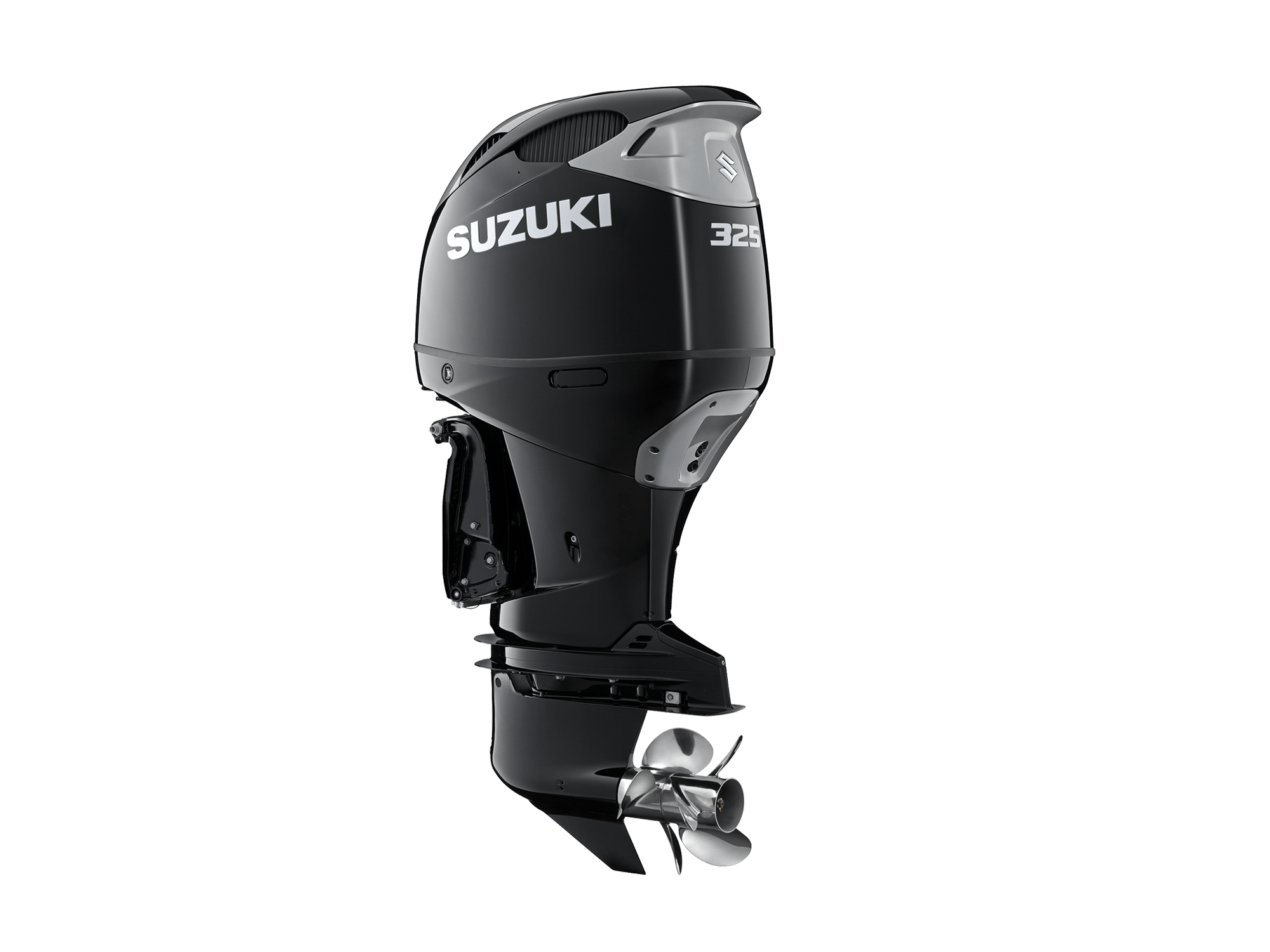

CONTRA-ROTATING PROPELLER
The contra-rotating propeller provides more “grip” underwater, and because contra-rotating props distribute the engine torque evenly over two propellers, the torque per propeller decreases and gear diameter can be reduced. This makes a reduction in gear diameter possible, which could then lead to the design of a smaller, more hydrodynamic gear case.
DUAL INJECTORS
Injecting fuel does two things, it atomizes the fuel and, incidentally, it cools the cylinder to minimize knock. To achieve the power we wanted, we needed to inject 100% of the fuel into the cylinder all at once, at a precise time, and at a precise angle to both cool the cylinder and to allow combustion to take place in the center of the combustion chamber.
The Dual Injector System using two smaller injectors provided the required precision as well as improved atomization, increasing output by 3% without causing knocking.
DIRECT INTAKE SYSTEM AND DUAL LOUVER SYSTEM
At high speed, water particles could be directed, trapped, and drained away.
Our experienced engineers worked on applying this theory to practice by increasing the intake flow to convert water vapor to particles and designing blades to capture and deflect those particles away from the intake flow. The Dual Louver System incorporates a double shield of blades, each one designed in a dog-leg shape. The outer row of blades removes the spray from the boat and the inner louvers capture and drain the remaining mist.
As a result, intake air temperature is free of moist and no higher than 10° above ambient.
SPECIFICATIONS
MODELDF325A
RECOMMENDED TRANSOM HEIGHT mm (in.)
X : 635 (25)XX : 762 (30)
STARTING SYSTEM Electric
WEIGHT kg (Ibs.) *1
X : 330XX : 339
ENGINE TYPE V6 - 55° DOHC 24-Valve
Valve Train Drive Chain with Variable Valve Timing
FUEL DELIVERY SYSTEMElectronic Fuel Injection
- 6
PISTON DISPLACEMENT ㎤ (cu.in.) 4,390 (267.9)
BORE × STROKE mm (in.) 98 (3.74) x 97 (3.82)
MAXIMUM OUTPUT kW (PS) 239.0 (325)
STEERING Remote
FULL THROTTLE OPERATING RANGE rpm 5,300 - 6,300
OIL PAN CAPACITY l (U.S./Imp. qt.) 8.0
IGNITION SYSTEM Fully-transistorised
ALTERNATOR 12V 54A
ENGINE MOUNTING Shear Mount
TRIM METHOD Power Trim and Tilt
GEAR RATIO 2.29:1
GEAR SHIFT F-N-R (Drive-by-Wire)
EXHAUST Through Prop Hub Exhaust
PROPELLER SELECTION (Pitch) *2
All propellers are the 3-blade type
FRONT: 3×15 1/2×15.0-31.5
REAR: 3×15 1/2×15.0-31.5
*1: Dry Weight: Including battery cable, not including propeller and engine oil.
*2: Please enquire at your local dealer for details of the propeller.
