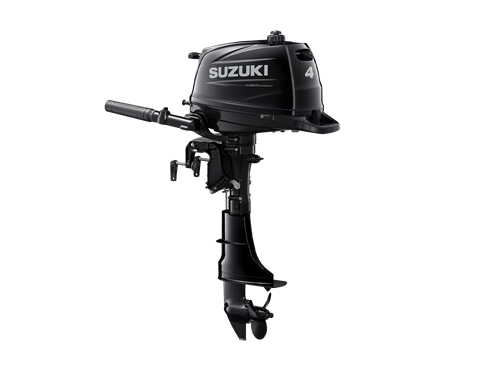

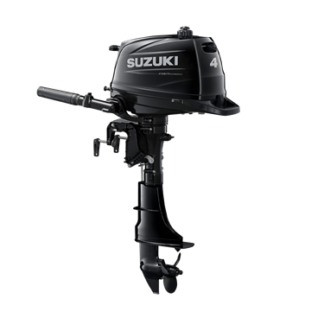

SUZUKI DF4A

Please contact us for our price match offers ashmarine@msn.com

Email: ashmarine@msn.com

or call (0) 1392 877800 (0) 1392 876654 (0)7768470151

Easy to carry, easy to store, easy to use

Our brand new 4hp, 5hp and 6hp models are lightweight, easy and quiet to use, incredibly reliable plus they also boast a new design and unique colour.

With a compact design and weighing in at only 24kg (short shaft) these new outboards are incredibly versatile and with class-leading technical innovations and some simple, yet effective, ergonomic design features, these new models are incredibly easy to live with.

The key benefits and features are:

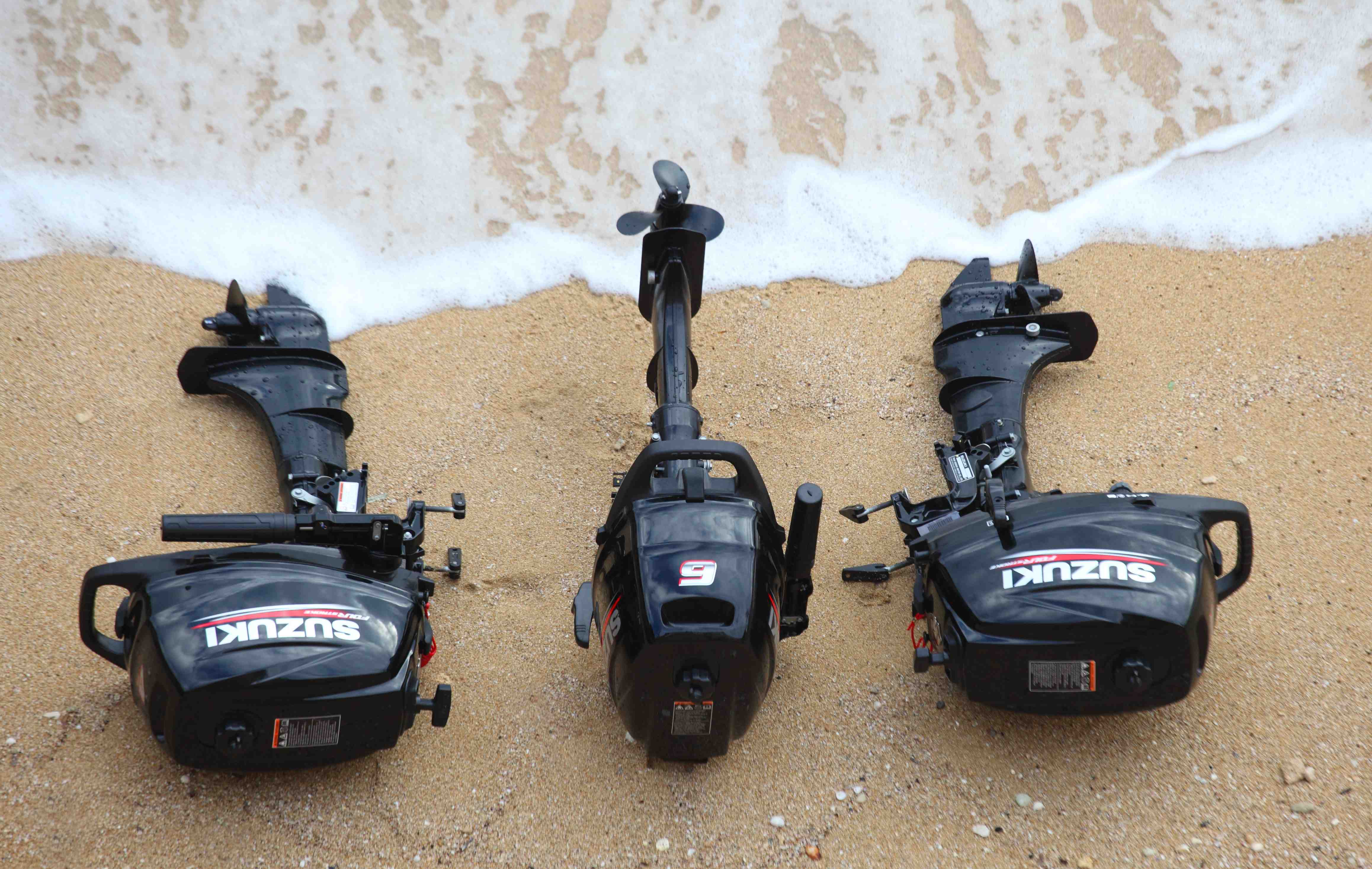

• Easy to transport and store courtesy of a new three-way storage capability which eliminates the worry of fuel or oil leakage
• Easy to lift and carry with two sturdy handles

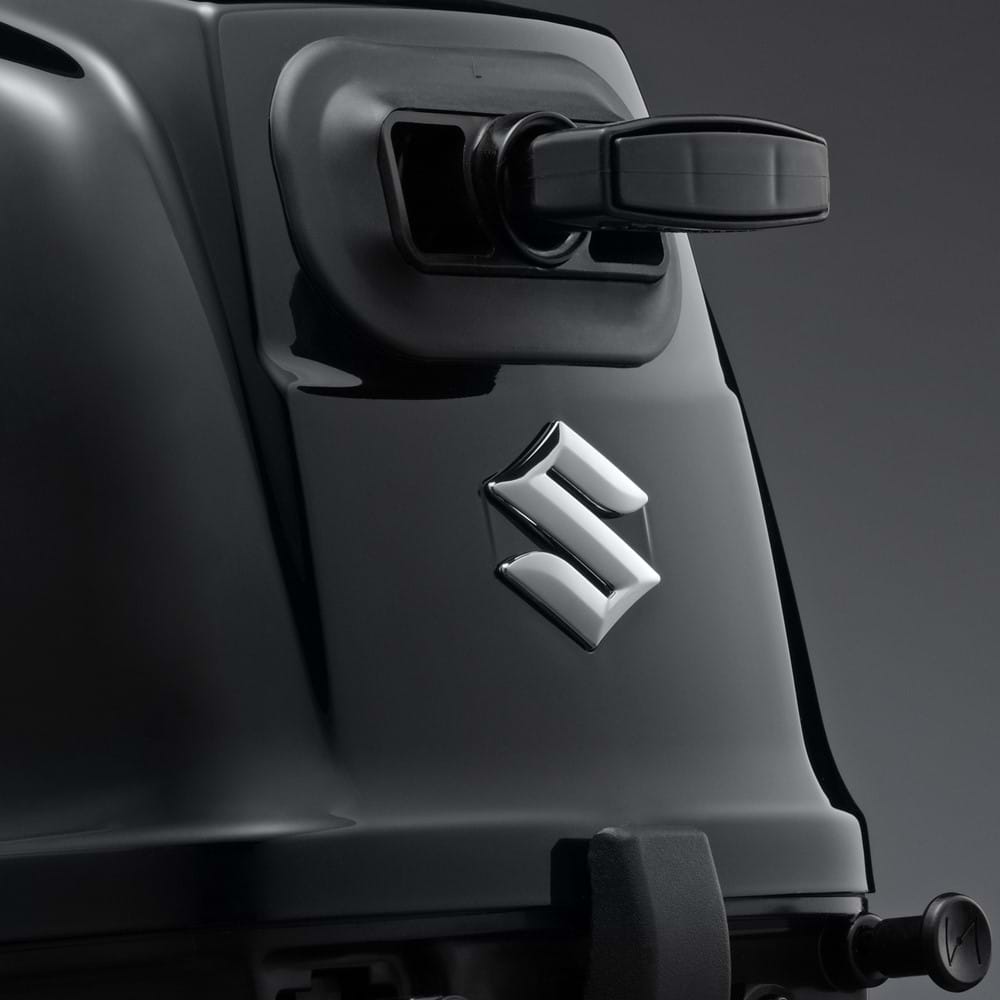

• Easy to start after storage courtesy of a new forced lubrication and gravity-fed fuel system
• Easy to use with new tilt system
• Smooth and quiet running thanks to an offset crankshaft
• Low vibration as a result of a new tiller handle design
• Highly reliable thanks to a first in class oil filter
• Incredibly durable thanks to our anti-corrision system

• DIMENSIONS AND WEIGHT

  Recommended transom height: S: 381mm (15in) L: 508mm (20in)

  Weight: S: 24Kg L: 25Kg

  Bore x Stroke: 60.4 x 48.0mm

  Propeller Selection (pitch): 6"-7"

  ENGINE SPECIFICATION

  Starting System: Manual

  Engine Type: OHV

  Fuel Delivery System: Carburettor

  No. of Cylinders: 1

  Piston Displacement: 138cc

  Maximum Output: 2.9KW

  Full Throttle Operating Range: 4,000 - 5,000

  Steering: Tiller

  Oil Pan Capacity: 0.7L

  Fuel Tank Capacity: 1.0L

  Ignition System: Digital CDI

  Alternator: 12V 5A (optional)

  Engine Mounting: Bushing Type

  Trim Method: Manual

  Gear Ratio: 1.92:1

  Gear Shift: F-N-R

  Exhaust: Above Prop Exhaust
