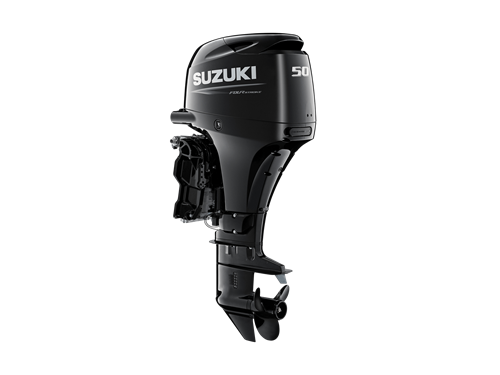

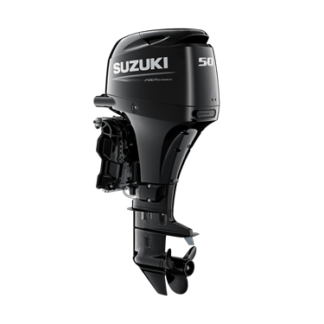

Suzuki DF50A 50hp Long Shaft Outboard Engine
£6,399.00
NEW Suzuki DF50 ATL
Email: ashmarine@msn.com
or call (0) 1392 877800 (0) 1392 876654 (0)7768470151
Compact, yet powerful, and with low maintenance – the ideal engine for all kinds of boating life and applications, including pontoons and heavy craft.
Suzuki Easy Start System
Starting is simplicity itself with Suzuki’s Easy Start System. No need to hold the key: just turn it once and the system stays engaged until the engine starts. Smoother and simpler, to get you up and running quicker.
Self-Adjusting Timing Chain
All models from the DF40A up feature a maintenance-free timing chain. In this a simple yet effective design, the chain runs through an oil-bath to keep it lubricated, while a hydraulic tensioner keeps the chain in correct adjustment automatically.
Easy start system
Lean Burn control system
Self-adjusting timing chain
Largest reduction gear ratio in its class
ENGINE SPECIFICATION
Starting System: Electric
Engine Type: DOHC 12-Valve
Fuel Delivery System: Multi-Point Sequential Electronic Fuel Injection
No. of Cylinders: 3
Piston Displacement: 941cc
Maximum Output: 36.8KW
Full Throttle Operating Range: 5,300 - 6,300
Steering: Remote
Oil Pan Capacity: 2.7L
Fuel Tank Capacity 25L (optional)
Ignition System: Fully-transistorised
Alternator: 12V 19A
Engine Mounting: Shear Mount
Trim Method: Power Trim and Tilt
Gear Ratio: 2.42:1
Gear Shift: F-N-R
Exhaust: Through Prop Hub Exhaust
Contact us for price and availability
