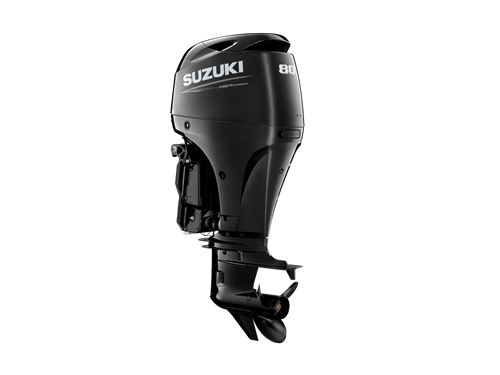

Suzuki DF80 ATL 80hp Long Shaft Outboard Engine
£9,700.00 Original price was: £9,700.00.£8,599.00Current price is: £8,599.00.
DF80A Lean Burn
Please contact us for our price match offers ashmarine@msn.com
Email: ashmarine@msn.com
or call (0) 1392 877800 (0) 1392 876654 (0)7768470151
The DF80A is lightweight and versatile, giving you the power and performance you need, when you need it
The DF80A benefits from our Lean Burn Control System which enables the engine to operate on a lean air-fuel ratio or a thinner mixture of fuel. The system controls the air to fuel mixture by predicting fuel needs according to operating conditions. It delivers its benefits over a wide operating range providing significant improvements in fuel economy from low speed operation well up into the cruising range, which all helps to reduce your fuel bills.
Fit a DF80A to your transom and you will benefit from; improved fuel efficiency, better throttle response, increased grip & acceleration, better weight distribution, zero-maintenance self-adjusting timing chain, smoother gear shifting, new reduced drag gear case all in a lightweight and compact design.

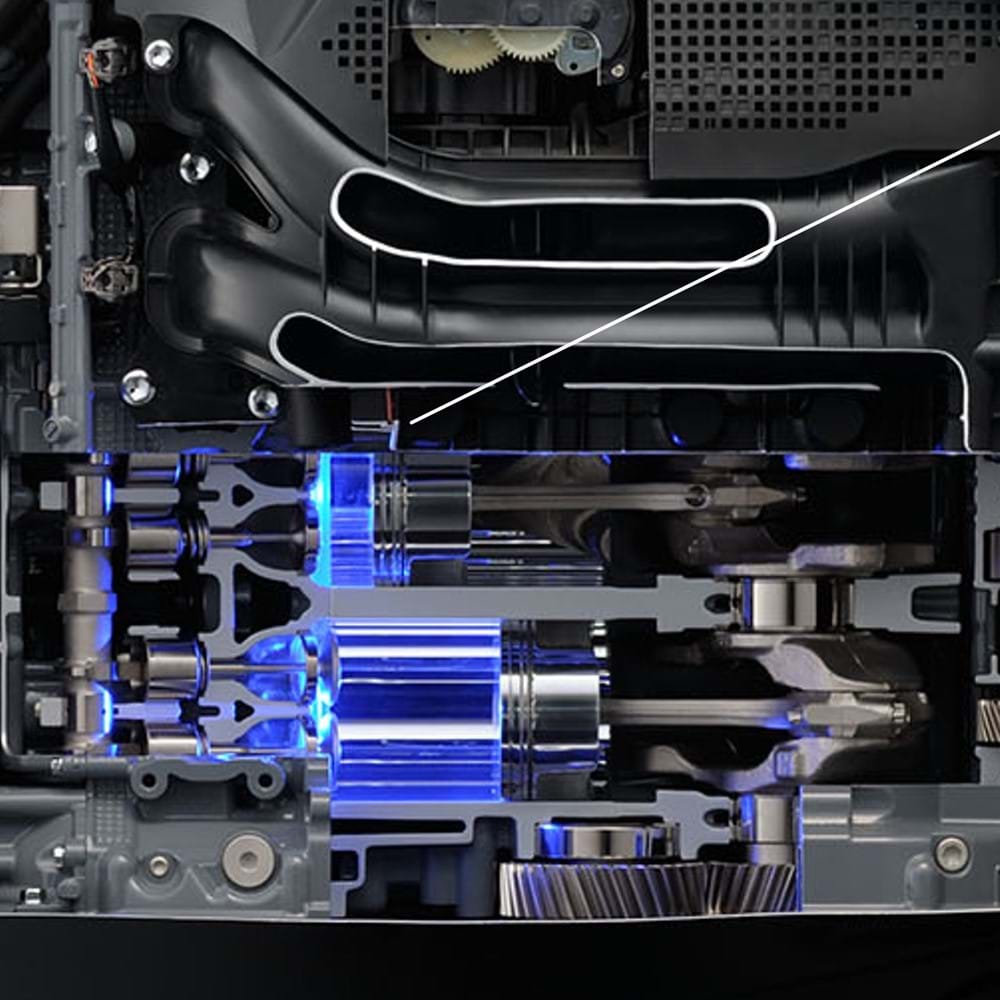

lean Burn control system
Suzuki's Lean Burn Fuel Control Technology predicts fuel needs according to operating conditions, then delivers the optimum fuel/air mixture to the engine resulting in greater fuel economy.
Offset drive shaft
The offset drive allows us to make our outboard engines smaller by moving the outboards centre of gravity forward, improving weight distribution, power output, balance and reduces vibration.
Self-adjusting timing chain
Simple, effective and maintenance free timing chain that runs in an oil-bath so it never needs lubricating and equipped with a hydraulic tensioner so it remains properly adjusted at all times.
Suzuki keyless start system
Designed with convenience in mind this system offers simple, stress-free starting and acts as an immobiliser to help deter theft.
Tilt limit system
Protects the boat from damage when tilting the outboard, acting as both a tilt limit and trim sender, the step-free, continuous system allows you to install the outboard on almost any boat.
DIMENSIONS AND WEIGHT
Recommended transom height: 510mm (20.08in)
Weight: 156.0Kg
Bore x Stroke: 75 x 85mm
Propeller Selection (pitch): 13" - 25"
ENGINE SPECIFICATION
Starting System: Electric
Engine Type: DOHC 16 valve
No. of Cylinders: 4
Piston Displacement: 1502cc
Maximum Output: 58.8KW
Full Throttle Operating Range: 5,000 - 6,000
Steering: Remote
Oil Pan Capacity: 4.0L
Fuel Tank Capacity: 25L
Ignition System: Fully-transistorised
Alternator: 12V 27A
Trim Method: Power Trim and Tilt
Gear Ratio: 2.59:1
Gear Shift: F-N-R
Exhaust: Through Prop Hub Exhaust
Related products
-
Suzuki DF200APL 4-Stroke Outboard Engine Range
Sale!
£18,599.00Original price was: £18,599.00.£16,599.00Current price is: £16,599.00. SUZUKI DF200AP
Please contact us for our price match offers ashmarine@msn.com
Email: ashmarine@msn.com
or call (0) 1392 877800 (0) 1392 876654 (0)7768470151
Models available
Suzuki DF 200 APL (Long shaft 508mm) ÂŁ16599
Suzuki DF 200 APX (Extra Long shaft 635mm) ÂŁ16999
Cruise through the waves, and enjoy the sounds of nature—not your motor.
FEATURES
TECHNOLOGY
SPECIFICATIONS
Semi-Direct Air Intake System
A specially designed cowl and semi-direct air intake system were designed to provide cooler air to the tuned long-track intake manifold while a four valve per cylinder DOHC powerhead with Variable Valve Timing lets the engine breathe more efficiently increasing acceleration and top end speed. Added to that are a fuel injection system and Suzuki's Lean Burn Technology for improved fuel economy.
Diagram of Semi-Direct Air Intake System
Big Block—High Performance Engine
With the DF200A, our goal was to build an outboard that provides all of the power and performance of a 147kW (200PS) class V6 outboard using a lighter, more compact four-cylinder configuration. To deliver that level of performance our engineers used an inline four-cylinder engine with a 2.9-liter "Big-Block" displacement and a higher 10.2:1 compression ratio to generate impressive acceleration and low-end torque.
Advanced Technology for Performance
Semi-Direct Air Intake System
The cover on the new DF200A has a modern upswept design giving it an innovative look. Underneath the looks though, the design is all about function. Incorporated into the cowl is a semi-direct air intake system that delivers cooler air directly to the engine's tuned multi-stage induction module. Engines breathing cooler air are able to increase operating efficiency resulting in greater acceleration and top-end speed.
The cover's design also helps reducing the temperature inside of the engine with ports that allow the rotating flywheel to push warm air inside of the cover to the outside.
Resonator
The engine's exhaust system is a well-known source of engine noise, but another, often overlooked source is the intake manifold. Air being sucked into the intake manifold at high velocities can generate a harsh sound.
The DF200A incorporates an air intake resonator that reduces such noise keeping operation exceptionally quiet.
Suzuki Lean Burn Control System
The Suzuki Lean Burn Control System is an intelligent fuel delivery system that achieves remarkable improvements in fuel consumption making fuel-efficient four-stroke outboards even more economical. Monitoring engine performance and operating conditions in real time, the system uses the 32-bit onboard ECM to predict fuel needs and deliver a leaner, more precise fuel mixture across the outboard's operating range. The results show significant improvements in fuel economy across the entire powerband, including the cruising range where the engine is used a majority of the time. Comparing the new DF200A with the original V6 DF200, tests show up to a 19% increase in fuel efficiency mainly in the cruising range (around 70% of its maximum speed).
LEAN BURN
Data used in the graphs were obtained through "In-House Suzuki Testing" under uniformed conditions. Results will vary depending upon operating conditions (boat design, size, weight, weather, etc.)
O2 Sensor Feedback Control System
Like many of Suzuki's high-end outboards, the DF200A features an O2 Sensor Feedback Control system that helps maintain optimum engine efficiency. The system monitors engine operating conditions to provide input to the ECM allowing it to manage the fuel/air mixture for maximum performance across the engine's full operating range.
Big Block—High Performance Engine
The design goal for the new DF200A was to provide boaters with the performance of a V6 DF200 outboard from a more compact, lighter weight four-cylinder engine. For this, Suzuki engineers started with the 2.9-liter straightfour block used on DF150/175, updating the "Big Block" design with a DOHC four-valve per cylinder powerhead and a 10.2:1 compression ratio. In addition, the engine incorporates Variable Valve Timing, Multi-stage Induction, and a 32-bit onboard computer. The end result is an engine that weighs 30kg less than the its V6 version making it an excellent choice for powering bass boats and other lightweight vessels. It's also an excellent choice for those wanting to upgrade older boats fitted with V6 two-strokes.
Multi-Stage Induction (MSI)
Getting the right amount of air into the cylinder has a great impact on performance. High-speed operation typically requires a greater volume of air, low-speed less. Suzuki's Multi-Stage Induction system meets these needs by utilizing two intake manifold pipes per cylinder to ensure the engine gets the right amount of air. At low rpm, air enters the combustion chamber through a longer, curved manifold pipe designed to improve combustion and improve low-end torque. As rpm increases, the valves open on the direct intake pipes. Shorter and lacking resistance, these pipes allow a greater volume of air into the chamber, increasing the engine's ability to breathe efficiently at high rpm resulting in higher power output during high-speed operation.
Higher Compression Ratio 10.2:1
Drawing upon our experience building race engines for motorsports, Suzuki engineers have designed the DF200A's in-line four-cylinder engine with a higher compression ratio of 10.2:1. The higher compression ratio delivers a noticeable improvement in performance and power output from the engine's 2,867cm3 displacement.
Largest Displacement In Its Class
Displacement has a direct effect on acceleration and torque. Generally speaking, the more the higher. For that reason, the DF200A is designed with a 2,867cm3 displacement making it the largest available in the 147kW (200PS) four-cylinder four-stroke class.
VVT (Variable Valve Timing)
Variable Valve Timing is utilized on many of Suzuki's highend outboards to deliver high performance across the outboard's full powerband while retaining the benefits that four-stroke technology provides. The system starts with an innovative cam profile designed for delivering maximum output and performance at high rpm. Variable Valve Timing is used to vary intake timing with the camshaft to optimize timing for low to mid-range operation. This allows the engine to deliver maximum power output across its entire operating range producing greater low to mid-range torque for powerful acceleration. The entire process happens automatically leaving you to enjoy the power and performance.
Smooth Operation
Counter Balancer System
One of the inherent characteristics common to in-line four cylinder engines when operating at high rpm is a secondary vibration that is directionally in line with the piston's movements. To neutralize this vibration, Suzuki engineers utilize a secondary balancer system that counters the piston's movement with a horizontal motion. To achieve this, the balancer is divided into left and right sections each rotating in an opposite direction at twice the speed of the crankshaft, effectively countering the secondary vibrations and producing smoother engine operation.
Quiet Operation
Suzuki four-stroke outboards have long been noted for their exceptionally quiet operation. Suzuki engineers go to great lengths incorporating methods designed to keep outboard operation as quiet as possible. In a noise comparison test between the DF200A and a competing 147kW (200PS) in-line four-stroke outboard, the results clearly show that the DF200A runs quieter than its competitor.
Thrust Mount System
The new DF200A incorporates a combination of soft type and high thrust rubber mounts on both the upper and lower mounts to reduce engine vibration and provide stable operation. Soft type rubber mounts are used to absorb vibrations generated in the idling through 2,000 rpm range while high thrust rubber mounts deliver stable operation under high loads increasing power and performance.
Offset Drive Shaft
Pioneered by Suzuki, the use of the offset drive shaft on four-stroke outboards has long been utilized to reduce the size of the outboard. Found on all Suzuki four-strokes from the DF70A and up, this design positions the crankshaft in front of the drive shaft simultaneously moving the outboard's center of gravity forward. While the design contributes greatly to the outboard's overall compactness and increased power performance, it also moves the engine's axis of inertia, the point where engine vibrations are at a minimum, up over the upper engine mount, thus greatly reducing vibration. These outboards also incorporate two-stage gear reduction designed to take maximum advantage of the power produced by these high performance engines. Providing a final drive ratio of 2.50:1—the largest you can find in either of these outboard classes—it delivers powerful torque for quick acceleration and great top-end speed.
Advanced Electronics
32-Bit ECM (Engine Control Module)
The DF200A is equipped with a 32-bit ECM (Engine Control Module) that provides precision control over motor operation, particularly the ignition and fuel delivery systems. This powerful onboard computer monitors and processes key data gathered in real-time from a series of sensors placed in areas crucial to engine operation. Those sensors include the Manifold Absolute Pressure Sensor, Crankshaft Position Sensor, Intake Air Temperature Sensor, Shift Position Sensor, Throttle Position Sensor, Cylinder Wall Temperature Sensor, Camshaft Position Sensor, and Exhaust Manifold Temperature Sensor. Using these data the computer delivers precision control of the engine's ignition and fuel systems maintaining an optimal spark and fuel supply under all operating conditions.
High Output Alternators
These days boats are equipped with a wide array of electronics that demand an ample flow of power to keep them running. On the other hand, the DF200A is equipped with an alternator engineered to produce a majority of its maximum output of 44A (12V) with the motor running at a low 1,000rpm—ample for most circumstances.
Multi-Point Sequential Electronic Fuel Injection
Suzuki pioneered the use of electronic fuel injection in four-stroke outboards with the launch of its original DF70/60 in 1997. Suzuki's Multi-Point Sequential Electronic Fuel Injection supplies each of the engine's cylinders with an optimized mixture of fuel and air that is injected into the cylinder at high pressure according to commands from the ECM's 32-bit computer. The system delivers improved fuel economy, crisp acceleration and reduced emissions that meet emissions regulations. It also conforms to the Recreational Craft Directive (RCD) Standards, Directive 2003/44EC of the European Parliament and of the Council, and has received a three-star rating from the California Air Resource Board (CARB).
Designed with Convenience in Mind
Water-cooled Voltage Regulator with Isolator
Water-cooled voltage regulators incorporated on both outboards dissipate heat in the regulator to enhance durability. The battery charging system also incorporates an isolator function that allows the use of two batteries.
The system splits electric current into two circuits and is designed to safeguard the main battery in the event that the sub battery becomes drained.
Fuse Box
Fuses for the outboard's electrical system are housed in a single fuse box located on the side of the outboard motor. This design keeps the outboard's exterior clean while providing convenient access.
Tilt Limit System
To protect the boat and motor from damage that can occur when tilting the motor, both outboards incorporate a user adjustable tilt limit switch that prevents the outboard from tilting beyond a predetermined point.
Dual Engine Flush Ports
Over time, salt, sand, and dirt buildup can restrict flow in the cooling system causing damage. To help prevent such buildup, both outboards are equipped with two freshwater flush ports that make flushing the cooling system as easy as possible. With one port located on the port side of the down housing and a second on the front panel, you'll always have easy access to the flushing system whether the boat is in or out of the water.
Knock Sensor
Found on DF140A and DF115A, the knock sensor monitors combustion to provide the ECM with information needed for precise management of engine timing for optimum performance. In addition to maximizing power output, the system also helps increase engine durability.
Suzuki Water Detecting System
Water in the fuel can lead to problems that include poor combustion, lower power output, and corrosion.
The Suzuki Water Detecting System is designed to help protect the engine from moisture in the fuel utilizing a water detecting fuel filter to alert the operator with both visual and audio warnings when water is present in the fuel. The filter is also designed to let you check for water visually.
Durability and Reliability
Suzuki's Anti-Corrosion Finish
To guard against corrosion, Suzuki protects its outboards with its own specially formulated Suzuki Anti-Corrosion Finish. Applied directly to the outboard's aluminum alloy, this finish provides maximum bonding of the finish to the aluminum surface. Layering an epoxy primer undercoat, black metallic finish, and clear acrylic fiber finish on top of this forms an effective treatment against corrosion, protecting those parts of the outboard's aluminum alloy that are constantly exposed to saltwater.
MODELDF200A*7
RECOMMENDED TRANSOM HEIGHT mm L:508, X:635
STARTING SYSTEM Electric
WEIGHT kg *5 L:235, X:240
ENGINE TYPE DOHC 16-Valve
FUEL DELIVERY SYSTEM Multi-Point Sequential Electronic Fuel Injection
- 4
PISTON DISPLACEMENT cm3 2,867
BORE Ă—STROKE mm 97 Ă— 97
MAXIMUM OUTPUT kW147
FULL THROTTLE OPERATING RANGE rpm 5,500-6,100
STEERING Remote
OIL PAN CAPACITY Lit. 8.0
IGNITION SYSTEM Fully-transistorized
ALTERNATOR 12V 44A
ENGINE MOUNTING Shear Mount
TRIM METHOD Power Trim and Tilt
GEAR RATIO 2.50:1
GEAR SHIFT F-N-R
EXHAUST Through Prop Hub Exhaust
PROPELLER SELECTION (Pitch)*6
All propellers are the 3-blade type 17"-27.5"
*5:Dry weight: not including propeller and engine oil
*6:Please inquire at your local dealer for details of the propeller
*7:Counter Rotation Model Available
The appearance, colors, and equipment of outboard motors may differ according to market and grade.
Specifications may change without prior notice.
*Manufacture data
Call Ash Marine 01392 877800
-

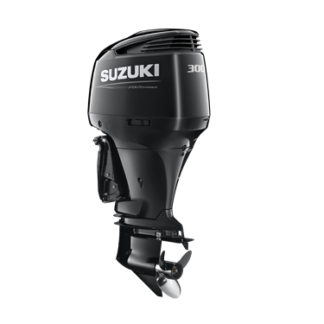

Suzuki DF300APX / BTX 4-Stroke Outboard Engine Range
