Models available:
- MFS30D S : 4STR Short Shaft, EFI
- MFS30D L : 4STR Long Shaft, EFI
- MFS30D EPS : 4STR Short Shaft, Elec Start, Remote Control, EFI
- MFS30D EPL : 4STR Long Shaft, Elec Start, Remote Control, EFI
- MFS30D EPTS : 4STR Short Shaft, Elec Start, Remote Control, Power Tilt EFI
- MFS30D EPTL : 4STR Long Shaft, Elec Start, Remote Control, Power Tilt EFI
- Can also be fitted with a Multifunction Tiller Handle to replace the remote control box if tiller control with electric start and power trim is preferred.
Overview:
- Light and compact!
- Advanced cross-flow induction for smooth operation
- Canister style oil filter for easy replacement
- Larger capacity oil reservoir for optimum lubrication
- Ultra Low emission, EPA and CARB approved
- Tuned intake system for crisp takeoffs
- 7 Year limited warranty
Features
- ⢠Digital CD ignition system for quicker starts
- ⢠Recoil starter with larger reel making manual starting fast and easy
- ⢠Large alternator and rectifier for superior battery charging
- ⢠Adjustable steering friction for reducing steering effort*
- ⢠Front mounted shift lever for easier operation
- ⢠Shallow water drive*
- ⢠Remote Control **
- ⢠Through-the-prop exhaust for a quieter ride
- ⢠Thermostatically controlled cooling system for consistent engine temperature
- ⢠Zinc coating on internal water passages for superior corrosion resistance
- ⢠High grade marine aluminum alloy that provides the ultimate protection against corrosion
- ⢠Stainless steel water pump housing liner for outstanding durability
- ⢠12 litre fuel tank including fuel fittings and fuel line
Specifications
Engine | 4 Stroke 3 Cylinder |
---|---|
Output | 30 ps (22.1 kw) |
Displacement | 500 cc (30.5 cu.in.) |
Bore x Stroke | 61 x 57 mm (2.4 x 2.25 in) |
Starting | Electric or Manual |

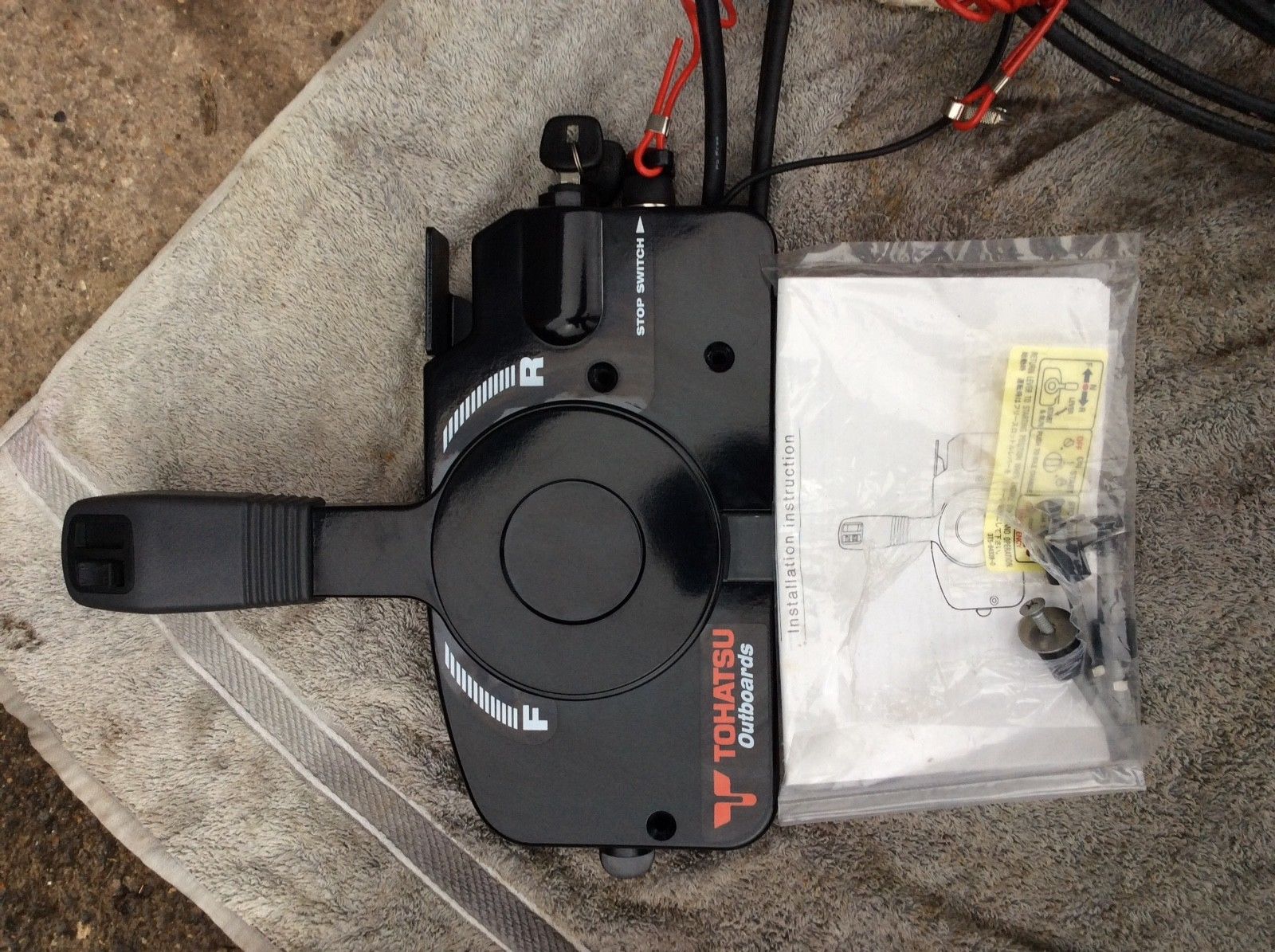

Control Type | Remote Control or Tiller Handle |
Gear Shift | Forward ā Neutral ā Reverse |
Gear Ratio | 2.17:1 (12:26) |
Propeller Selection Range | 8ā³ ā 14ā³ |
Transom Height | 15ā³, 20ā³ |
Fuel | Unleaded Gasoline (87 Octane) |
Oil Type | NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ) |
Oil Capacity | 1.7L (1.8 qt.) |
Fuel Tank | 25 L (6.6 US Gal.) Separate Fuel Tank |
Weight* | 58 kg (128 lbs.) |
Alternator Output | 12V, 210W, 17.5A |
Max. RPM Range | 5,500 ā 6,500 |
Electronic Fuel Injection | Standard |
Digital CD Ignition System | Standard |
Start In Gear Protection | Standard |
Thermostat Controlled Cooling System | Standard |
Through-The-Prop Exhaust | Standard |
Overheat Buzzer | Standard |
Power Trim and Tilt | Option |
Oil Pressure Warning | Standard |
Variable Idle Speed | Standard |
Shallow Water Drive | Standard |
